S-Beam Load Cell - 101AH
? Material: Alloy steel
? Rated Capacities: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP65
? CE, RoHS and Ex certified
? Measurement Ukraine certified
- Model Number: 101AH
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

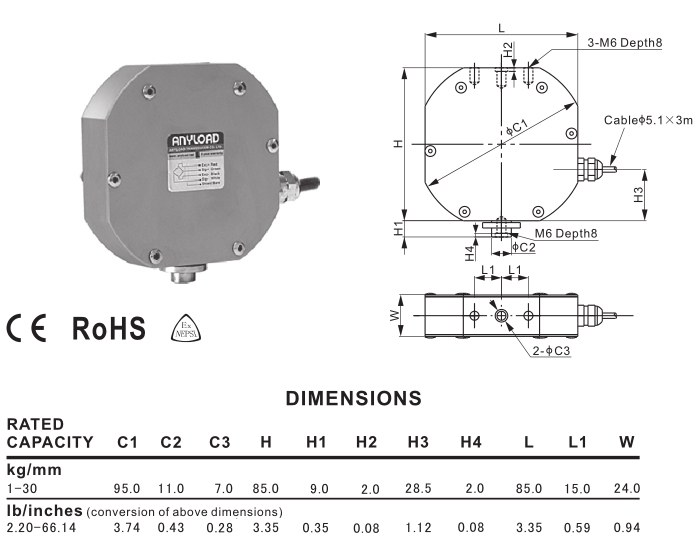

101AH S-Beam Load Cell
101AH S-Beam Load Cell Features
? Material: Alloy steel
? Rated Capacities: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg
? Full Scale Output: 2mV/V ± 10%
? Safe Overload: 150%
? Breaking Overload: 300%
? IP Rating: IP65
? CE, RoHS and Ex certified
? Measurement Ukraine certified
|
Full Scale Output |
2.0 mV/V ±10% |
|
Zero Balance |
±0.02 mV/V |
|
Non-linearity |
<±0.017% |
|
Repeatability |
<±0.017% |
|
Hysteresis Error |
<±0.017% |
|
Creep in 30 min. |
<±0.023% |
|
Input Resistance |
400Ω±20 |
|
Output Resistance |
350Ω±3 |
|
Element Material |
Alloy Steel, Nickel Plated |
|
Recommended Excitation |
10V (15V Maximum) |
|
Insulation Resistance |
>2 [50V DC] GΩ |
|
Compensated Temperature Range |
-10°C to 50°C / 14°F to 122°F |
|
Safe Overload |
150% of full scale |
|
Breaking Overload |
300% of full scale |
|
Seal Type / IP Rating |
Environmentally Sealed / IP65 |
|
Cable Color Code |
Exc+ Red Exc- Black Sig+ Green Sig- White Shield Bare |
101AH S-Beam Load Cell Part Number
|
Rated Capacity |
Part No. |
Shipping Weight (kg) Approx. |
|
1kg |
101AH-1kg |
0.9 |
|
2kg |
101AH-2kg |
0.9 |
|
3kg |
101AH-3kg |
0.9 |
|
5kg |
101AH-5kg |
0.9 |
|
10kg |
101AH-10kg |
0.9 |
|
20kg |
101AH-20kg |
0.9 |
|
30kg |
101AH-30kg |
0.9 |
