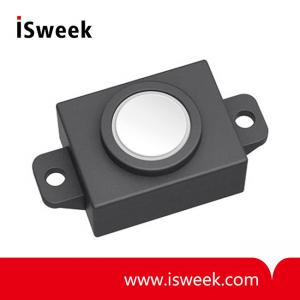

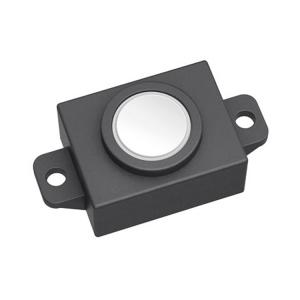

Ultrasonic Rangefinder - UM0090

? Measuring range?: 17～300cm (object: flat surface)?
? Frequency?: 58kHz?
? Resolution?: <1cm?
? Response time?: <1ms?
? Power-up delay?: ≤1s?
? Blind zone?: 17cm?
? Operating temperature?: -40~+80 ℃?
? Relative humidity?: ≤95% (No condensation)?

Model Number: UM0090
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

UM0090 Ultrasonic Rangefinder Introduction
The UM0090 module is based on an ultrasonic sensor that combines transmitter and receiver in a single unit. By measuring the time of flight of ultrasonic wave, it can detect any object within 3 meters and output distance signals via UART interface.

This product features high sensitivity, fast response, and excellent anti-interference ability and stability. It is widely applied in object avoidance systems on robots, drones, and other smart devices.

UM0090 Ultrasonic Rangefinder Features
? Compact design for easy installation
? Measuring range up to 3M
? Excellent anti-interference ability
? Can detect objects of various colors, shapes and materials

UM0090 Ultrasonic Rangefinder Applications
? Robots
? Smart streetlight
? Smart trash bin
? Autonomous delivery vehicle

UM0090 Ultrasonic Rangefinder Technical Parameters

Properties
Measuring range	17～300cm (object: flat surface)
Frequency	58kHz
Resolution	<1cm
Response time	<1ms
Power-up delay	≤1s
Blind zone	17cm
Output Format
Output	Measured distance via serial port (unit: cm)
Trigger mode	Low level pulse, pulse width≥50us
Rated Operating Conditions
Working environment	indoors/outdoors
Operating temperature	-40~+80 ℃
Storage temperature	-40~+85 ℃
Relative humidity	≤95% (No condensation)
Power Supply
Power supply voltage	DC 5V
Working current	≤10mA
